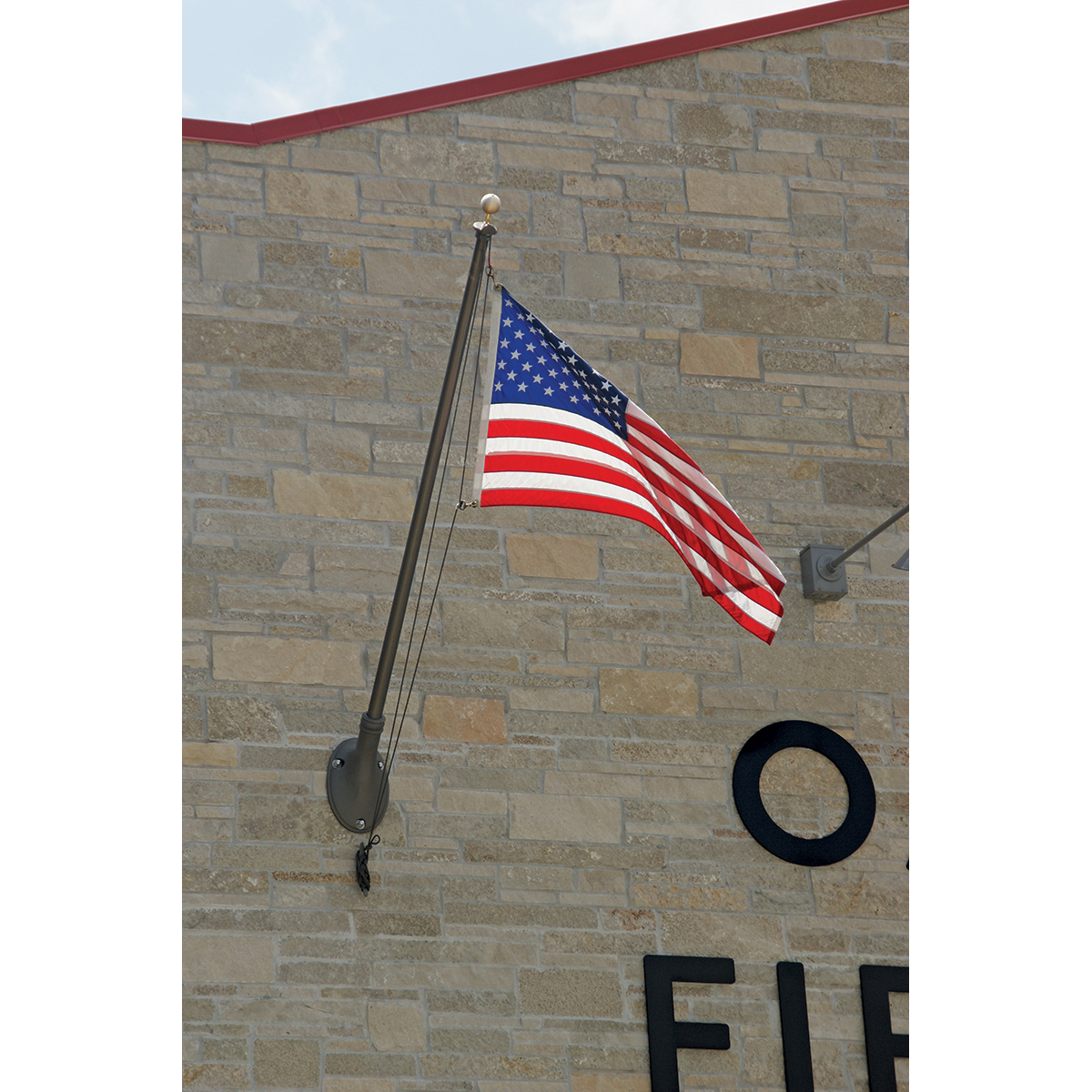

VERTICAL WALL MOUNT FLAGPOLES
External halyard wall mount aluminum flagpoles for applications where the flag is intended to fly above the roof line. Shafts are cone-tapered aluminium. Shaft lengths are available from 15 ft to 33 ft, shaft diameters from 2" to 5.5" and wall thickness from .125" -.188". Shafts can be ordered shortened to any length, especially suited for mult-pole installations or with staggered flagpole heights. Five bracket fabrications are available.

Finishes
Standard finish is satin mill finish. Optional finishes include natural anodized, anodized bronze, anodized black or white powdercoat. Brackets for all anodized flagpoles are powder coated to match.

VERTICAL WALL MOUNT - EXTERNAL HALYARD FLAGPOLES

USA & Canada Toll Free 800-798-5431

INTERNAL HALYARD WALL MOUNT FLAGPOLES
Vertical wall mount flagpoles are also available with internal halyards with a 5"- 5.5" base diameters, 23 ft to 33 ft and .188" wall thickness.Shafts can also be shortened for multiple pole installations. Both stainless cable winch systems and cam cleat rope based systems are available. A revolving truck assembly is standard.

Both the cable based and rope based systems come with the traditional cone style revolving truck assembly with upper and lower dual sealed spindle bearing assemblies and a 5" gold ball. An 8" gold powdercoated, cast ball/truck also with upper and lower dual sealed spindle bearings is a low priced option. Both upper and lower bracket assemblies are constructed using dual mounting cradles giving the assembly a total of 8 attachment bolts for maximum attachment strength.

Independence Winch and Stainless Steel Cable System
Rather than having a door in the side of the flagpole shaft as in the case of a ground mounted flagpole, the winch is attached to a platform that fits up inside the bottom bracket within easier reach. The winch and platform can be removed for maintenance with the proper wrench. An access hole is provided in line with the winch for inserting the winch handle. The lower bracket will appear to add approximately 1' to the overall length of the flagpole when installed.

Sentry Rope Based System
Uses a rope system inside the flagpole with an internal cam cleat installed in a lockable door to secure the flag in place when raised. The surface mount door frame is installed in the lower bracket with the flagpole shaft resting on an internally welded ring within the bracket and secured with set screws. An area below the door is provided for rope storage when the flag is raised. The lower bracket will appear to add 2' to the overall length of the flagpole when installed.

VERTICAL WALL MOUNT - INTERNAL HALYARD

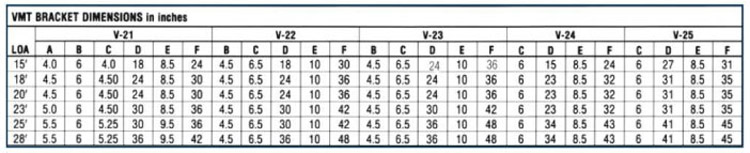

BRACKET DIMENSIONS, STYLES AND FINISHES

Bracket Styles
Brackets are cast or fabricated for use in through wall bolt applications. Multiple styles are available. Installations can also be behind parapets. Pipe ferrules and 4"x4" backing plates are available. Attachment bolts are not normally provided due to installation variables.

Finishes
Standard finish is satin mill finish. Optional finishes include natural anodized, anodized bronze, anodized black or white powdercoat. Brackets for all anodized flagpoles are powder coated to match. Special finishes, such as gold powdercoat base assemblies are available to match gold ball/truck assemblies to create a unique and elegant appearance
